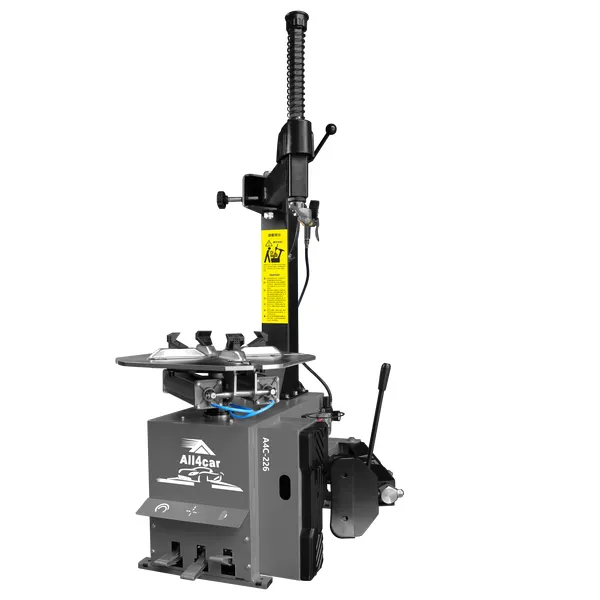

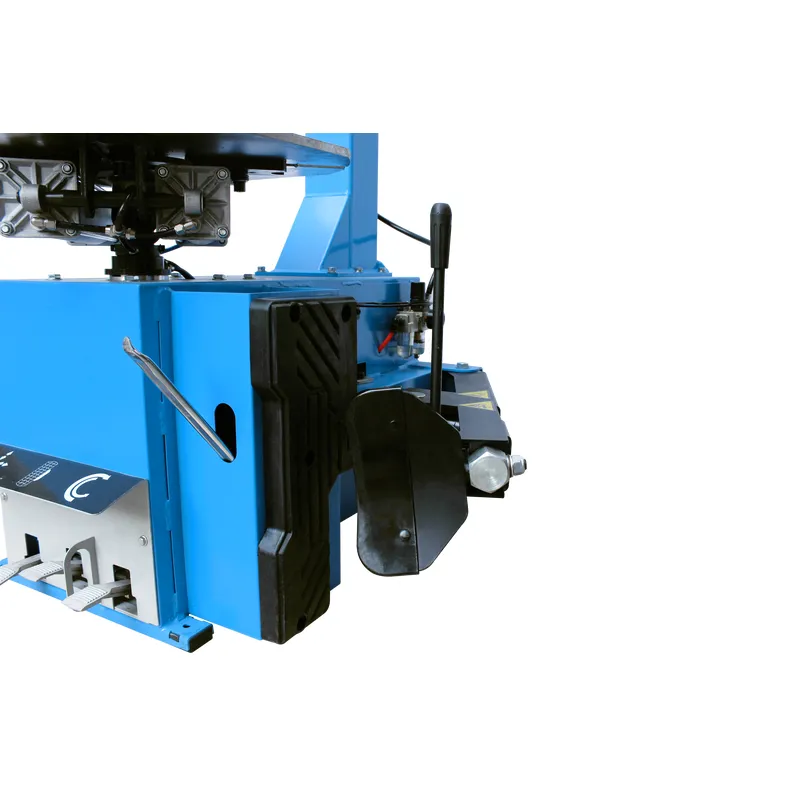

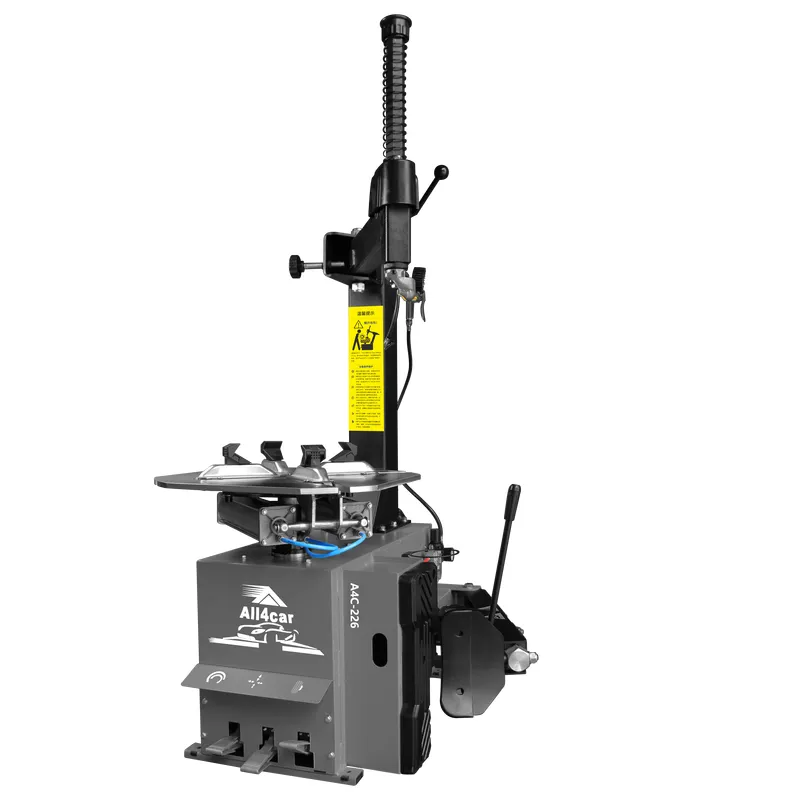

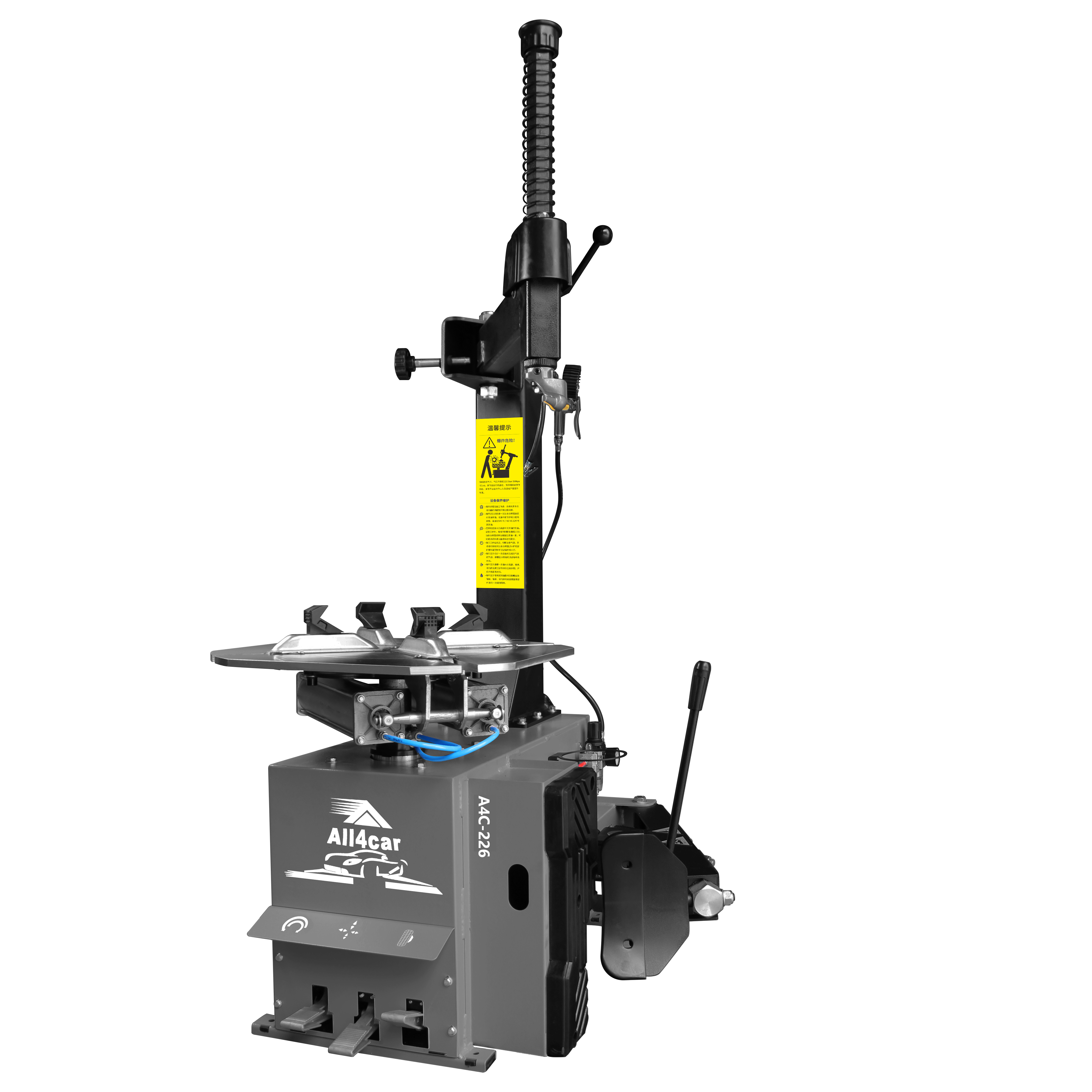

Swing Arm Tire Changer A4C-226

Car tire changer is a machine used to help tire technicians dismount and mount tires with automobile wheels. After the wheel and tire assembly is removed from the automobile, car tire changer has all the components necessary to remove and replace the tire from the wheel.

Different car tire changers allow technicians to replace tires on automobiles, motorcycles, and heavy-duty trucks. RoadBuck car tyre removal machines applied advanced tire and wheel technology, making it possible to change the low-profile or run-flat-tire quickly. You can find the best car tyre changer at RoadBuck - the best tire changer machine manufacturer & supplier in China. Our car tyre changers are available with multiple payment options and easy delivery.

We are quality tyre changing machine suppliers, offering high-performance tire changing machines exported to many countries and regions around the world. At the same time, we have won the support and recognition of our customers.

If you are looking for a professional car wheel changer factory, RoadBuck is your perfect option! We provide not only a wide range of auto maintenance service solutions, but also a wide range of vehicle repair equipment, such as arm car tyre changer machines, car wheel aligners/alignments, car wheel balancers, car lifting equipment, and so on.

Description

Max. Wheel diameter:1120mm(40")

Max. Wheel width:420mm(16")

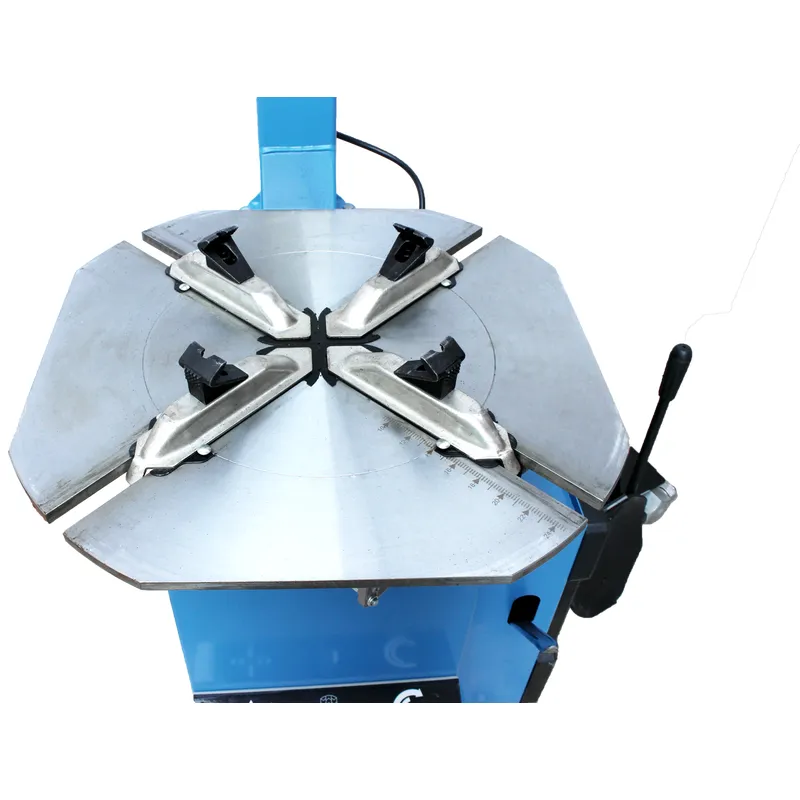

Inside chuck size:12"-26"

Outside chuck size:10" -24"

Power supply:220V 1PH / 380V 3PH

Frequency:50/60Hz

Working pressure:8-12bar

Bead breaker power per cylinder:2800kg

Rotate speed:6-12rpm

Net weight:212kg

Product Features：

1. Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more sooth and corrosion resistance, longer life. Drawer control assembl, simple structure fastand easy maintenance.

2. 180 mm diameter steel plated carved two-way intake tire shoulder sepatation cylinder, wear-resisting, rust and corrosion resistant, long service life.

3. Using steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.
