which based on car body, more precision and stable. Camera measurement system using two camera and work together with four target disks, which is a revolutionary measurement method. Target disk - there isn’t electronic components inner and efficiently to eliminate the equipment error which caused by circut. Calibration - only need once RCP calibration after installation, process simple and repeated calibration is unnecessary. Software system, simple operation, measurement can be finished in 2 minutes.
Wireless, no electronic sensor and components, can avoid some questions caused by sensor error. Measurement precision is not affected by the unbalance of vehicle and car lift. Wheel an rim compensatio is unneccessay for measurement process. The advantage incrase the accuracy and reliability of measurement, improve the working efficiency.
| Technology parameter | ||||
| Items | Front wheel measurement precision | Front wheel measurement range | Rear wheel measurement precision | Rear wheel measurement range |
| Toe | ±0.02 | ±20° | ±0.02 | X |
| Camber | ±0.02 | ±15° | ±0.02 | ±20° |
| S.a.i | ±0.02 | ±26° | X | ±15° |
| Caster | ±0.02 | ±26° | X | X |
| Thrust angle | X | X | ±0.02 | ±5° |

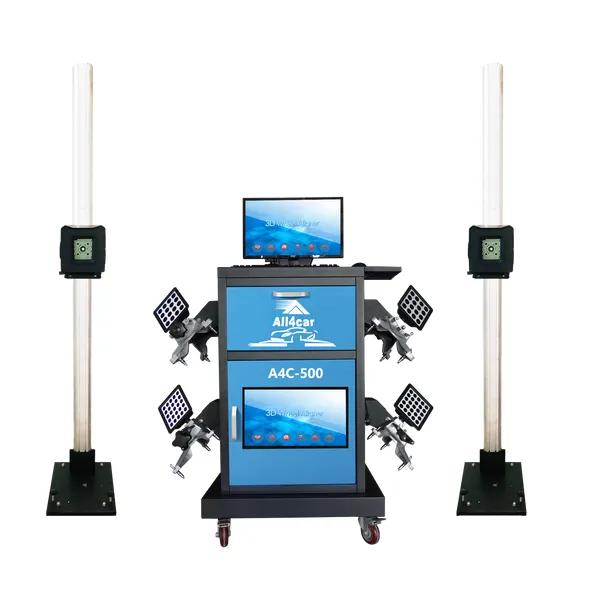

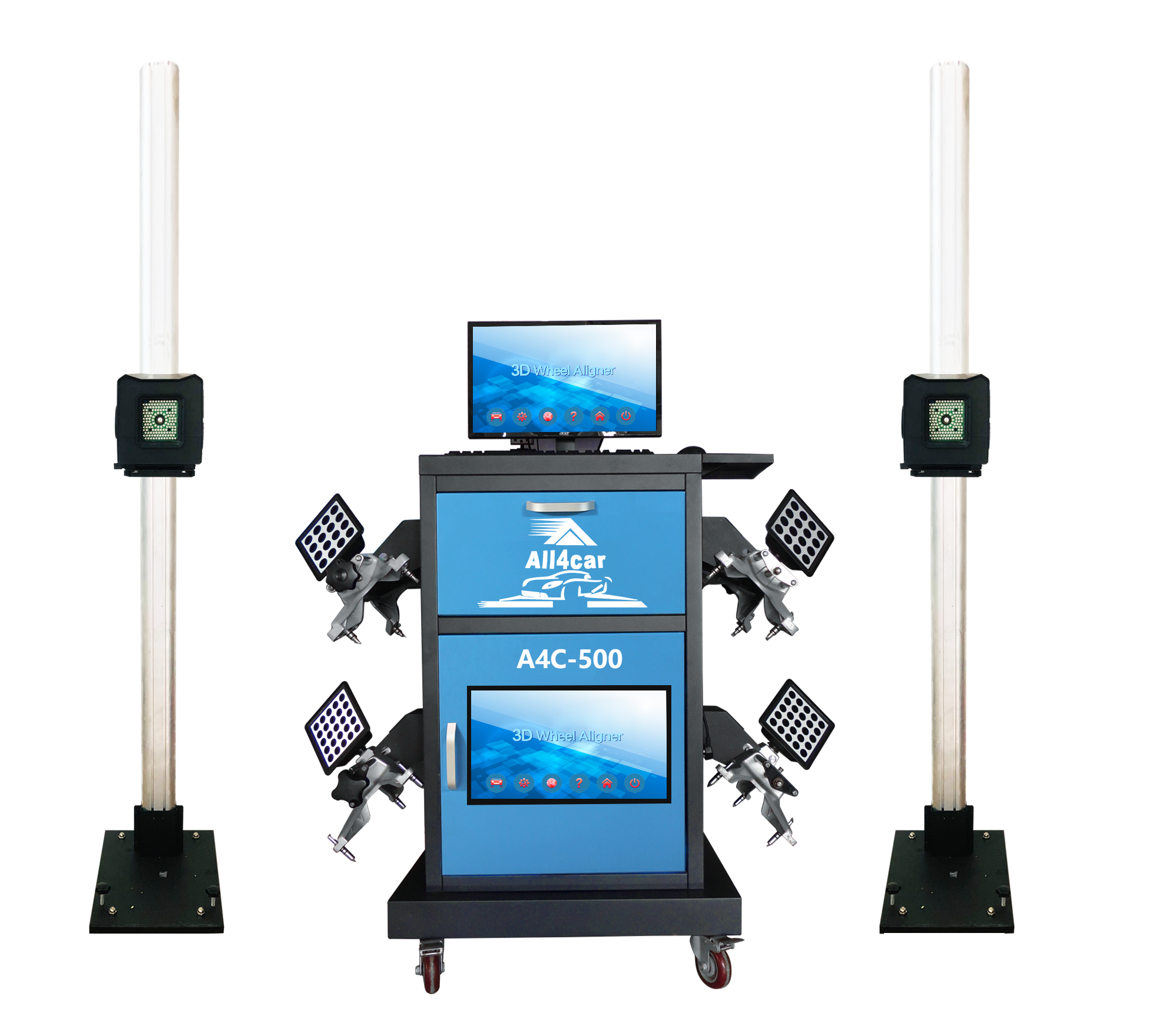

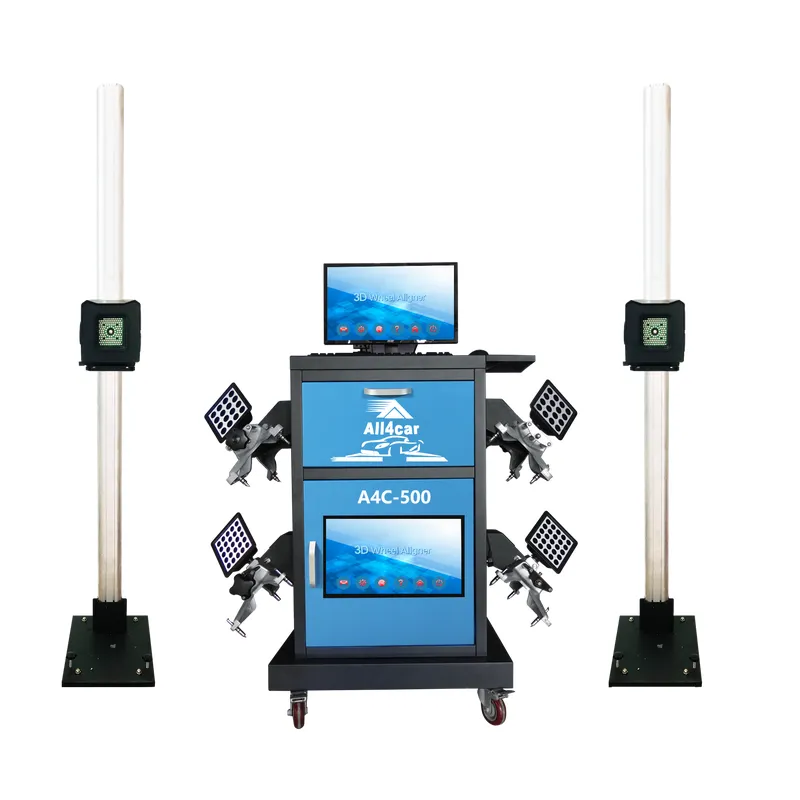

3 units 500 MP camera, it can flexibly adjust the width of two pillar according to different place. The third camera be used to compensated the error caused by displacement, save the work of the calibration.
The main positioning parameters of front and rear wheels are displayed on the same screen.
Remote technical support one key upgrade
● Date preview Front, rear wheel's measurement result can be displayed in one interface
● Two- dimensional dynamic display Can switch to different interface according to customers' requirements
The most authoritative autodata legitimate database.
Humanization print report can help customers got different options for different requiry.
Accessonies material - plastic material
Accessonies -Photographic record
Aplicable models - sedan commercial vehicle, minbus, etc
Accessonies material - international big brand
Accessonies - display data
Aplicable models - sedan commercial vehicle, minbus, etc
Accessonies material - speclal material
Accessonies - coordinate with measurement data
Aplicable models - sedan commercial vehicle, minbus, etc
