Max. Wheel diameter:1120mm(40")
Max. Wheel width:420mm(16")
Inside chuck size:12"-26"
Outside chuck size:10" -24"
Power supply:220V 1PH / 380V 3PH
Frequency:50/60Hz
Working pressure:8-12bar
Bead breaker power per cylinder:2800kg
Rotate speed:6-12rpm
Net weight:272kg
1. Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more sooth and corrosion resistance, longer life. Drawer control assembl, simple structure fastand easy maintenance.
2. 180 mm diameter steel plated carved two-way intake tire shoulder sepatation cylinder, wear-resisting, rust and corrosion resistant, long service life.
3. Using steel plate combined cabinet, firm structure, weld concealment, beautiful appearance.

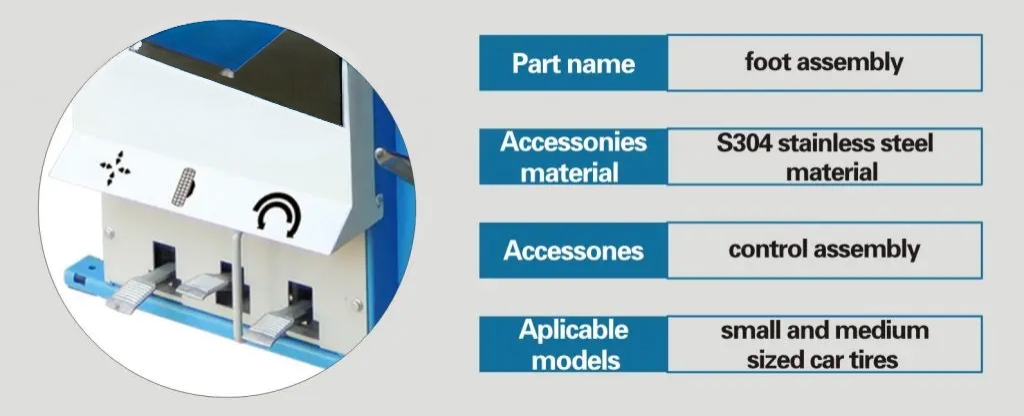

Accessonies material - S304 stainless steel material
Accessones - control assembly
Aplicable models - small and medium sized car tires
Accessonies material - chorme plated material
Accessones - fixed tire
Applicable models - small and medium sized car tires
Accessonies material - solid steel plate
Accessones - shovel tire
Applicable models - small and medium sized car tires
Accessones - Matching tyre removal
Applicable models - small and medium sized car tires
Accessonies material - aluminum lloy material
Accessones - provide pneumataic power
Applicable models - small and medium sized car tires
